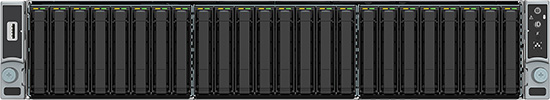

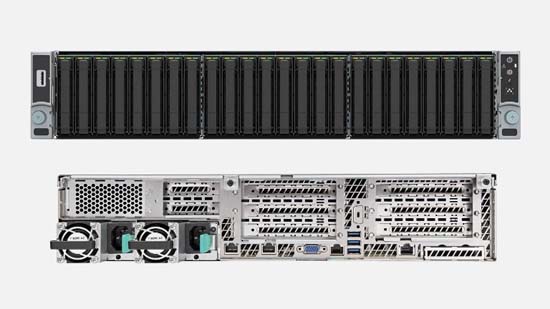

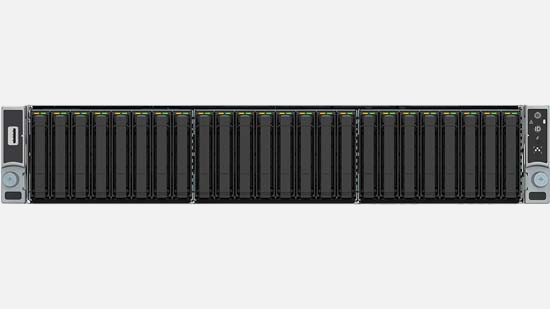

CyberServe Xeon SP2-R2224 ®

2U, Dual Intel Xeon Scalable Procesor, 24x 2.5" Hot Swap Drives, Dual 10Gbe Ports, Single 1300W PSU

  • 2U Rackmount 16.93" x 27.95" x 3.44"
  • 2 x Gigabit 10Gb Ethernet LAN Ports
  • Integrated BMC with IPMI 2.0
  • Up to 5 USB2 & USB3 Ports
  • SW RAID 0/1/10 (5 optional), Optional Hardware RAID & HBA Card
  • Optional Redundant Power Supply
  • Microsoft Windows, VMWare and Linux Compatible
  • Supports up to 24x SATA3 and SAS 2.5" Hard Drives
  • Configurable with 2x Intel Intel Xeon Scalable Processors 2nd Generation
  • Supports up to 24 modules of DDR4 ECC Registered Memory
  • 6x PCI Express Expansion Slots
  • Configurable with up to 3.1TB Server Memory

Independently Reviewed in IT Pro

Broadberry’s powerful Xeon Scalable rack server has tons of features for the price and some novel storage options

Dave Mitchell IT Pro | 5 Jan, 2018
Read Review


Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Trusted CyberServe Server Platform

The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.

Configure with up to 3.1TB RAM

Ready for the most demanding enterprise applications, the Broadberry CyberServe Xeon SP2-R2224 can be configured with up to 24 DDR4 ECC Registered memory modules.

Extra Expansion Slots

The CyberServe Xeon SP2-R2224 has 6 PCI-Express expansion slots allowing for plenty of future expandibility

Optional Hot-Swap Power Supply

The CyberServe Xeon SP2-R2224 is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.

Supports SATA Drives

This system can be configured with SATA drives for cost-effective 12gb/s storage.

Small Form Factor Storage

The CyberServe Xeon SP2-R2224 boasts high density storage and ultimate energy efficiency, catering for up to 24x High-Performance 2.5" SSD or Hard Drives

Dual Intel Xeon SP Processors

Designed for the most demanding tasks, the dual socket range of CyberServe Xeon SP® servers support the latest Intel Xeon® processor Scalable series

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, CyberServe Xeon SP servers deliver massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Designed for Cloud Computing

The Broadberry CyberServe Xeon SP® range has been built from the ground up for private / hybrid cloud environments, clustering, virtualised infrastructure and database management.

Completely Redesigned QPI

The Broadberry CyberServe Xeon SP® range has a completely redesigned QPI system, producing up to 21% improvement in data efficiency as well as a 50% reduction in idle power.

With IPMI Remote Management

All Broadberry CyberServe Xeon SP® rack servers are compatible with iPMI functionality, enabling complete control and management of your server through IP.

Reduce I/0 Network Latency

Boasting Intel Integrated I/0 on the processor, Broadberry CyberServe Xeon SP® servers accelerate data availability to the processing cores, reducing latency by up to 30%.

Intel® AVX-512 Boosts Speed

Intel Advanced Vector Extensions 512, the latest x86 vector instruction set with up to two fused-multiply add units and other optimisations, accelerates performance for the most demanding computational tasks.

Intel® QuickAssist Technology

Improving performance across applications and platforms, Intel QAT enhances security and compression performance in cloud, networking, big data, and storage applications.

More Advanced Omni-Path

The CyberServe Xeon SP® range replaces InfiniBand technology with a newer, more advanced interconnect called Omni-Path, allowing for 100Gbps bandwidth with no loss of PCIe lanes.

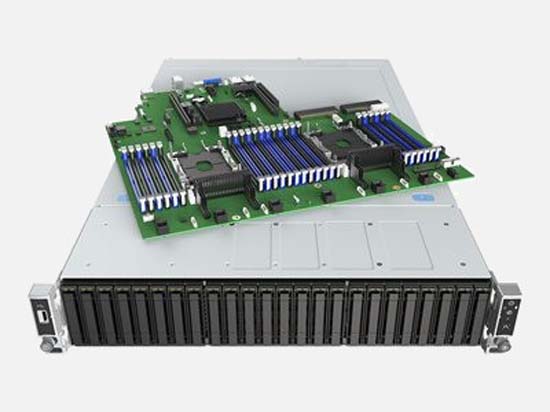

The CyberServe Xeon SP2-R2224 is a 2U rackmount server configurable with 2x Xeon Scalable Processor - Dual Socket series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon SP2-R2224 has 24x 2.5" SATA and 12Gb/s SAS Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 24x DDR4 ECC Registered memory banks providing up to 3.1TB of high-performance server memory. The CyberServe Xeon SP2-R2224 boasts High RAM Capacity, Extra Expansion Slots, Full Height/Length Expansion and Redundant Power Supply - Optional as just a few of its core features.

The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-R2224 can have any of its 24 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. Our rackmount servers with a high RAM / memory capacity are purpose built for RAM intensive applications such as virtualisation. Servers with extra expansion slots allow for future expandability or use in applications which require a large amount of PCI cards. This machine caters for full-height / full length PCI cards.

Redundant Power

The Broadberry CyberServe range of enterprise-class rack servers features high efficiency power supplies with leading features such as Titanium level efficiency, digital switching control, super quiet operation, redundancy, DC inputs, FCC class B certification, remote monitoring with PMBus, support for GPUs/graphics cards and Broadberry's signature server level quality and reliability; in a variety of form factors and capacities.

CyberServe power supplies are designed for enterprise level applications where high quality and reliability are critical, and where the highest power efficiencies are required to reduce TCO.

With strong experience in the server systems market, Broadberry are experienced in testing and validating these power supplies in all relevant enterprise environments under all necessary operating conditions, compiling long operating records for multiple applications.

Storage Technology

The CyberServe Xeon SP2-R2224 supports 24x 2.5" desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.

Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-R2224 can have any of its 24 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Configure for your Network

The CyberServe Xeon SP2-R2224 ’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.

Configure the CyberServe Xeon SP2-R2224 to match your application I/O demands and network infrastructure with up to 6x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors.

Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon SP2-R2224 is totally customisable with a wide range of robust I/O connectivity options.

IPMI 2.0 & KVM over IP

Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon SP2-R2224 at no extra cost.

Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.

Check the health of the CyberServe Xeon SP2-R2224 components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.

The CyberServe Xeon SP2-R2224 IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.

Expand with PCI-Express Expansion

Configure the CyberServe Xeon SP2-R2224 with up to 6x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon SP2-R2224 is a flexible platform for a wide-range of applications.

The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-R2224 can have any of its 24 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
